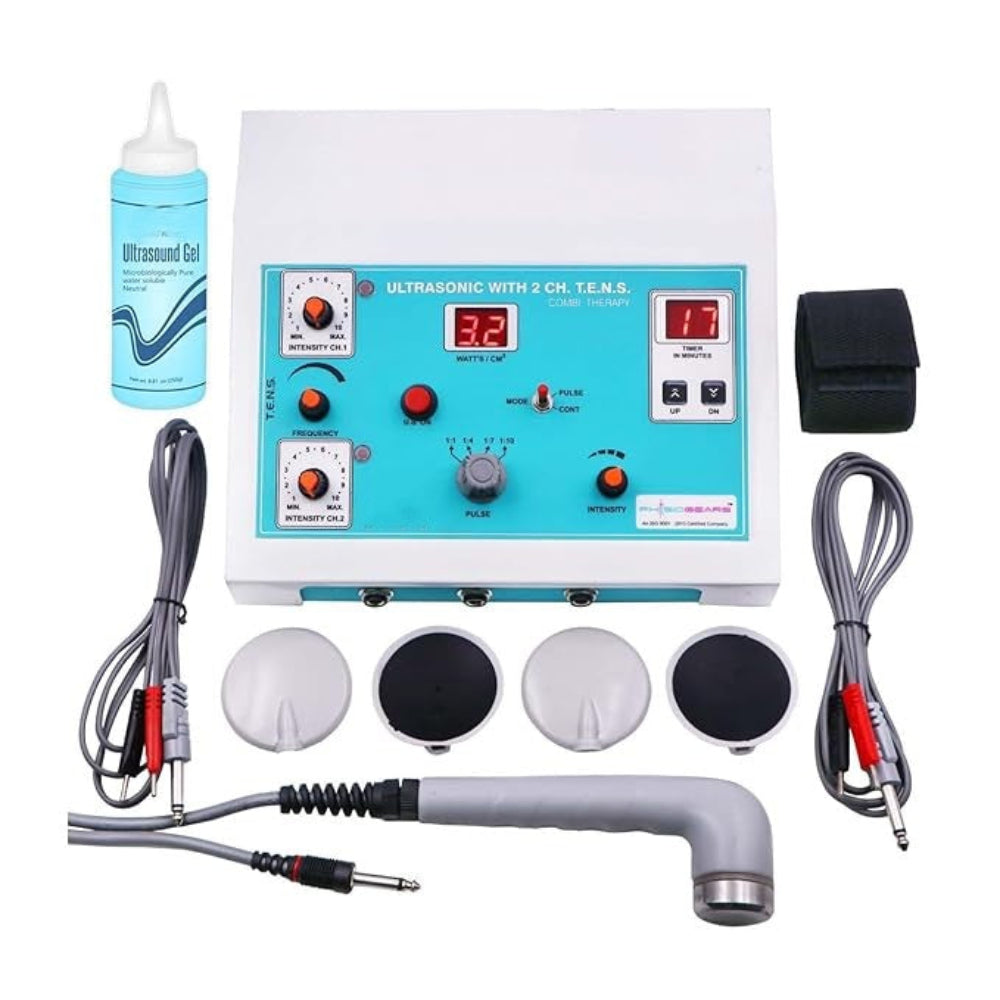

Theroheal 2 in 1 Therapy Unit (TENS + UST)

Advanced Pain Relief. Dual Therapy. One Compact Device.

The Theroheal 2 in 1 (TENS + UST) is a state-of-the-art physiotherapy device that combines Transcutaneous Electrical Nerve Stimulation (TENS) and Ultrasound Therapy (UST) in one compact, easy-to-use unit. Designed for clinics, physiotherapists, and home users, this device delivers non-invasive, drug-free pain relief and deep tissue healing with precision and safety.

Whether you're treating muscle spasms, chronic pain, joint stiffness, soft tissue injuries, or inflammation, the Theroheal 2 in 1 is your all-in-one solution for faster recovery and enhanced patient care.

Key Features:

✅ Dual Therapy Function – Combines TENS and Ultrasound Therapy for comprehensive treatment.
✅ User-Friendly Interface – Digital display with intuitive control panel for easy operation.
✅ Portable Design – Lightweight and compact, ideal for both clinical and home settings.
✅ Adjustable Parameters – Customize intensity, duration, and frequency for optimal results.
✅ Safe & Non-Invasive – Promotes natural healing without medication or side effects.

Technical Specifications:

🔹 TENS Mode:

• Channels: Dual Output

• Waveform: Symmetrical Bi-Phasic Square Pulse

• Frequency: 2Hz to 150Hz (adjustable)

• Pulse Width: 50μs to 250μs

• Intensity: 0 – 100 mA

• Modes: Burst, Normal, Modulation

• Timer: 0 to 60 minutes

🔹 Ultrasound Therapy (UST) Mode:

• Frequency: 1 MHz

• Ultrasound Head: Waterproof transducer head

• Output Mode: Continuous & Pulsed

• Effective Radiating Area (ERA): 4.0 cm²

• Power Output: 0.5 to 3.0 W/cm²

• Duty Cycle: 10%, 50%, 100%

• Timer: 0 to 30 minutes

Applications:

• Chronic & acute pain

• Arthritis & joint pain

• Sciatica & neuralgia

• Muscle strains & sprains

• Tendonitis, bursitis

• Frozen shoulder, tennis elbow

• Sports injuries & rehabilitation

Theroheal 2 in 1 (TENS + UST) delivers precision therapy, speeds up recovery, and ensures effective pain management—all in one powerful device.
